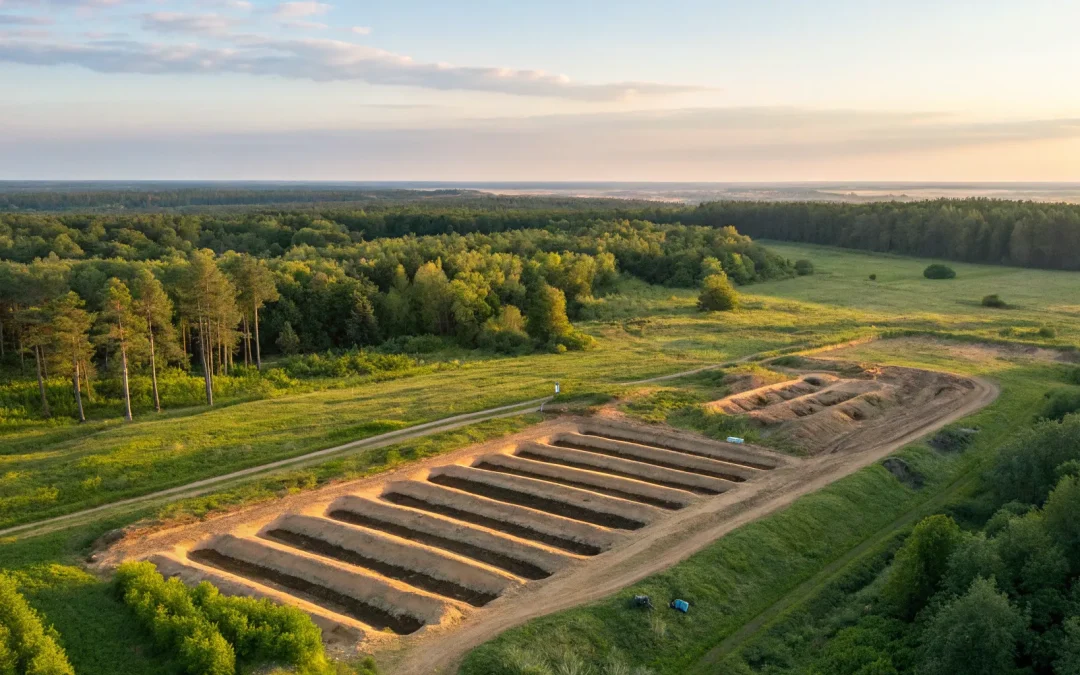

A Pro’s Guide to Septic Tank Drain Field Layout

Nothing stalls a project faster than a failed septic inspection. The frustrating part is that most system failures aren’t caused by faulty installation but by mistakes made long before a single trench is dug. These errors, often related to soil analysis or improper sizing, can lead to expensive repairs and significant delays. The key to avoiding these headaches lies in a solid plan for the system’s most vital component: the drain field. A well-engineered septic tank drain field layout is your best insurance against future problems. This guide is designed to help you sidestep the common pitfalls we see in the field. We’ll cover the essential steps for planning a reliable system that protects your client’s investment and keeps your project moving forward smoothly.

Key Takeaways

• Site Conditions Dictate the Design: A drain field’s success depends entirely on the property’s unique soil and site conditions. A professional soil test is non-negotiable; it provides the data needed to correctly size the system, choose the right type, and ensure it functions effectively from day one.
• Longevity Depends on Smart Habits: A well-designed system still needs proper care. Maximize its lifespan by scheduling regular septic tank pumping, managing household water usage, and keeping heavy equipment and deep-rooted trees away from the drain field area.
• Professional Design Ensures Compliance: Florida’s septic codes and setback requirements are strict and complex. Partnering with an expert ensures your design meets all local regulations, which helps you secure permits without delays and avoid costly mistakes during installation.

What is a Septic Drain Field?

Think of the septic drain field—often called a leach field—as the hardworking, unseen hero of a septic system. It’s a crucial underground network designed to safely treat and recycle wastewater from a home or building. After the septic tank separates the solid waste, the remaining liquid, called effluent, flows into the drain field. Here, a natural process takes over, using soil and microorganisms to filter and purify the water before it slowly returns to the groundwater.

A properly designed drain field is essential for protecting both public health and the environment, especially in Florida, where the water table is high. It’s not just a series of pipes; it’s a living filtration system that, when designed correctly, works seamlessly with the surrounding environment. The success of the entire septic system hinges on the drain field’s ability to handle the daily wastewater load efficiently. That’s why getting the septic system design right from the start is so important.

Its Role in Your Septic System

A septic system is a three-part team: the septic tank, the drain field, and the soil. The septic tank handles the first step, acting as a settling basin where heavy solids sink to the bottom as sludge and lighter fats and oils float to the top as scum. The relatively clear liquid effluent in the middle is what moves on to the drain field. The drain field’s job is to distribute this effluent over a large area. This prevents any single spot from becoming oversaturated and allows the soil to do its work effectively, treating the wastewater before it ever reaches the groundwater.

How It Protects Local Groundwater

The drain field is your project’s first line of defense in protecting local water quality. As the effluent seeps out of the perforated pipes and into the soil, a natural purification process begins. The soil acts as a massive biological filter. Helpful microorganisms in the soil break down harmful bacteria, viruses, and other contaminants, while the soil particles themselves trap nutrients like phosphorus. This natural filtration process is incredibly effective at cleaning the water, ensuring that only treated water re-enters the ecosystem. A well-designed drain field is key to preventing groundwater contamination and preserving Florida’s natural resources for years to come.

The Key Parts of a Drain Field Layout

A high-performing drain field isn’t just a patch of land; it’s a precisely engineered system. Each part has a specific job, and they all need to work in harmony to treat wastewater effectively and protect the property for years to come. When you’re planning a new build or a system replacement, understanding these components is the first step to a successful project. Let’s break down the four key players in a standard drain field layout.

Distribution Box

Think of the distribution box as the traffic cop of your septic system. This small but mighty concrete or plastic box receives the liquid effluent after it leaves the septic tank. Its one critical job is to split that flow evenly among the different pipes in the drain field. If the box isn’t installed perfectly level, some trenches will get overloaded with wastewater while others run dry. This imbalance leads to premature failure and saturated spots on the lawn. For builders and installers, getting the distribution box set correctly is a non-negotiable step for ensuring the system’s longevity and proper function.

Perforated Pipes and Trenches

From the distribution box, the effluent travels into a network of perforated pipes. These pipes are laid out in long, shallow trenches, forming the core of the drain field. The perforations, or small holes, are essential—they allow the wastewater to slowly and evenly seep out into the surrounding material. The design and maintenance of these trenches are carefully planned based on the site’s soil type, slope, and available space. A well-designed trench system maximizes the absorption area and prevents any single spot from becoming oversaturated, which is key to efficient wastewater treatment.

Gravel or Infiltrator System

The perforated pipes don’t just sit in dirt. Traditionally, they’re bedded in a layer of clean gravel or crushed stone. This gravel layer creates a porous environment that helps the effluent drain away from the pipes and provides a large surface area for beneficial microbes to grow and treat the wastewater. In many modern Florida installations, you’ll see infiltrator chambers instead of gravel. These are large, arch-shaped plastic structures that create an open space for effluent to disperse. They offer a larger effective absorption area than gravel systems, often allowing for a smaller drain field footprint—a major plus on tight lots.

Soil Absorption Area

The final and most important component is the soil itself. The soil absorption area is where the real magic happens. As effluent trickles down through the gravel or infiltrator system, the surrounding soil acts as a massive natural filter. A healthy soil biome contains microbes that break down harmful pathogens and organic matter. At the same time, soil particles trap nutrients like phosphorus and nitrogen, preventing them from contaminating groundwater. This is exactly why our septic system design process always starts with a thorough soil analysis—the soil’s characteristics determine the entire system’s size, type, and ultimate success.

How Do You Design a High-Performing Drain Field?

Designing a drain field that performs reliably for decades isn’t about guesswork; it’s a science. A successful layout is a direct result of careful site analysis, precise calculations, and a deep understanding of local regulations. When you get these core components right, you create a system that functions efficiently, protects the environment, and prevents costly future repairs. For builders and installers, a well-designed drain field is the foundation of a successful project and a happy homeowner. It all starts with a solid plan based on the unique conditions of your property, ensuring every detail is accounted for before breaking ground.

Start with Soil and Percolation Testing

Before a single trench is dug, you need to understand the ground you’re working with. A professional site evaluation is the critical first step, as it reveals the soil’s type, texture, and absorption rate. This process, known as a percolation or “perc” test, measures how quickly water drains through the soil. The results tell us exactly how large the drain field needs to be and what type of system will work best. Florida’s diverse soil conditions, from sandy loam to dense clay, make this step non-negotiable for designing a system that is both effective and compliant for the long haul.

Calculate the Correct Size and Load

Once you know the soil’s absorption capacity, you can calculate the appropriate size for the drain field. The system’s size is based on the projected daily wastewater flow, which is typically determined by the number of bedrooms in the home. A common rule of thumb is that a three-bedroom house might need between 450 and 600 square feet of absorption area. An undersized field will quickly become overwhelmed, leading to system failure, while an oversized one is an unnecessary expense. Getting the calculations right ensures the drain field can handle the expected load without issue for years to come.

Factor in Slope and Elevation

Gravity is your best friend in a conventional septic system. For the effluent to distribute evenly throughout the drain field, the layout must have a consistent, gentle downward slope from the septic tank to the distribution box and out through the perforated pipes. Even a slight miscalculation in elevation can cause wastewater to pool in one area, oversaturating the soil and leading to system failure. On properties with challenging topography, a professional designer can engineer solutions to ensure proper flow, but it all starts with accurately mapping the site’s natural slope and elevation from the very beginning.

Meet Florida’s Setback and Code Requirements

Every drain field design must adhere to strict local and state health codes. These regulations dictate the minimum distances—or setbacks—required between the drain field and other features like wells, property lines, buildings, and bodies of water. These rules are in place to protect public health and prevent groundwater contamination. Navigating these requirements can be complex, as they can vary by county. Working with an expert who understands Florida’s specific codes ensures your project gets permitted without delays and that your system is fully compliant from day one.

What Influences Your Drain Field’s Design?

Designing a drain field isn’t a one-size-fits-all process. A successful layout is a custom solution that accounts for the unique conditions of your property. Think of it like a puzzle where every piece—from the soil under your feet to the slope of the land—must fit perfectly. Overlooking even one of these factors can lead to premature system failure, costly repairs, and permitting headaches. Before you break ground, it’s critical to understand the four main elements that will shape your drain field’s design and ensure its long-term performance.

Property Size and Topography

The amount of usable space and the natural lay of the land are the first things to consider. A small or awkwardly shaped lot might limit your options, potentially requiring a more compact or advanced system design. The property’s topography—its slope and elevation—also plays a huge role. A drain field needs a specific, gentle slope to allow gravity to do its work, distributing wastewater evenly without letting it pool or run off too quickly. Steep slopes or low-lying areas prone to flooding present significant challenges that require an expert septic system design to solve. A professional site evaluation ensures the layout works with your land, not against it.

Site-Specific Soil Characteristics

The soil in your drain field area is the final filter for your wastewater, so its composition is non-negotiable. The ideal soil is permeable enough to absorb water but has enough fine particles to treat it effectively. A professional soil analysis will identify the soil type, texture, and absorption rate. For instance, sandy soils drain quickly, while heavy clay soils drain slowly and may require a larger or specially designed system. An expert will look for visual cues, too. Brown or red soil is a good sign of proper drainage, whereas gray soil often indicates a high water table, which is a major red flag. This is why a thorough soil and percolation test is the foundation of any reliable drain field design.

Local Regulations and Permitting

Every drain field installation must comply with state and local health codes, and Florida has specific requirements you can’t ignore. These regulations are in place to protect public health and the environment. They dictate everything from the minimum size of the absorption area to the types of materials you can use. Navigating the permitting and compliance process involves submitting detailed site plans, soil reports, and system designs for approval. Trying to cut corners or misinterpreting the code can lead to denied permits and significant project delays. Working with a professional who knows the local regulations inside and out is the best way to ensure your project gets approved without a hitch.

Proximity to Wells, Buildings, and Water

Setback distances are a critical part of local regulations. These rules mandate minimum distances between your drain field and other features on your property and neighboring lots. For example, a drain field must typically be located at least 100 feet from any private water well to prevent contamination. There are also strict setbacks from buildings, property lines, and surface water bodies like lakes, rivers, or wetlands. A precise site plan is essential to map out these distances accurately. Failing to meet setback requirements will result in a failed inspection and can even require you to completely relocate the system, a costly and frustrating mistake.

Avoid These Common Drain Field Planning Mistakes

When you’re juggling timelines and budgets, it’s easy to see how details in drain field planning can get overlooked. But a small mistake here can lead to major headaches down the road, from failed inspections and costly rebuilds to unhappy clients. The good news is that these pitfalls are entirely avoidable with the right expertise and a solid plan. Getting the layout right from the start ensures the septic system functions efficiently for decades, protects the local environment, and keeps your project on track. Let’s walk through some of the most common missteps we see so you can steer clear of them on your next build. A successful project hinges on a design that accounts for the unique conditions of each site, and that’s where professional septic system design becomes your most valuable asset. By sidestepping these common errors, you’re not just installing a septic system; you’re building a foundation of reliability and trust with your clients.

Skipping a Thorough Soil Test

Guessing about the ground beneath your feet is a recipe for a failing septic system. The soil is responsible for treating the wastewater, and not all soil is created equal. A professional soil and percolation test is the only way to understand the soil’s texture, composition, and absorption rate. This information is critical for determining the correct size and type of drain field. Without it, you could install a system that’s too small for slow-draining clay soil, leading to backups, or one that’s oversized and unnecessarily expensive for sandy soil. A thorough site evaluation tells us everything we need to know to design a system that works with the land, not against it.

Ignoring Setback Requirements

Every county and municipality in Florida has strict rules about where a drain field can be located. These setback requirements dictate the minimum distance the system must be from wells, property lines, buildings, and bodies of water like lakes or canals. These regulations are in place to protect public health and the environment by preventing contamination. Overlooking them isn’t just a minor error; it can halt your project entirely, leading to fines and forcing a complete redesign. Always verify the specific local codes for your project area before breaking ground to ensure your layout is fully compliant from day one.

Getting the System Size Wrong

A drain field isn’t a one-size-fits-all component. Its size must be precisely calculated based on two key factors: the property’s expected wastewater flow and the soil’s absorption capacity. The wastewater load is typically estimated based on the number of bedrooms in a home, not bathrooms. An undersized drain field will quickly become overwhelmed, leading to sewage backups and premature failure. An oversized one is a waste of your client’s money and valuable land. Accurate sizing ensures the system can handle the daily load effectively without straining its components, giving it the best chance for a long, trouble-free lifespan.

Overlooking Placement and Compaction

The final location of the drain field on the property matters immensely. It should be in an open area that won’t be disturbed in the future. This means keeping it far away from planned driveways, patios, pools, or building additions. It’s also crucial to prevent soil compaction during and after installation. Never drive or park heavy equipment over the drain field area, as the weight can crush the pipes and compact the soil, ruining its ability to absorb water. Thoughtful placement protects the system from physical damage and ensures it can do its job without interference for years to come.

What Are the Telltale Signs of a Failing Drain Field?

Even a perfectly designed drain field has a finite lifespan. Over time, factors like soil compaction, root intrusion, or an overloaded system can lead to failure. Catching the problem early is key to avoiding costly repairs, property damage, and environmental contamination. As a builder or installer, knowing these warning signs can help you diagnose issues for your clients or on your own properties before they become major headaches. If you spot any of these red flags, it’s a clear signal that the system needs a professional evaluation. A thorough inspection can determine if the issue stems from the drain field, the septic tank, or another component. Getting an expert opinion from a team that specializes in septic system design and inspections is the best first step toward a solution. Keep an eye out for these four classic indicators that a drain field is in trouble.

Pooling Water and Sewage Odors

This is one of the most unmistakable signs of a failing drain field. If you see standing water or damp patches on the ground near the drain field area—especially when it hasn’t rained—it’s a serious red flag. This often comes with a distinct, unpleasant sewage smell. The odor and pooling water mean that effluent is no longer being absorbed by the soil. Instead, it’s rising to the surface. This not only indicates a system failure but also creates a health hazard on the property that needs to be addressed immediately.

Slow Drains and Plumbing Backups

Problems in the yard often show up inside the house first. If toilets are flushing slowly, sinks are taking forever to drain, or you’re hearing gurgling sounds from the pipes, don’t just assume it’s a simple clog. These can be early symptoms of a saturated drain field. When the soil can no longer accept wastewater from the septic tank, the entire system backs up, slowing down the drains throughout the home. In severe cases, you might even experience sewage backing up into tubs or floor drains, which is a clear sign the system is overwhelmed.

Unusually Green or Lush Grass

While a healthy lawn is usually a good thing, a patch of grass over the drain field that is significantly greener and more lush than the rest of the yard is a cause for concern. This happens when untreated wastewater surfaces, acting as a potent fertilizer for the grass directly above the drain field lines. This vibrant green patch is a visual cue that the system isn’t treating and dispersing effluent below ground as it should. According to the EPA’s guide for homeowners, this is a common symptom of a hydraulic failure in the absorption field.

Saturated Ground Above the Field

Sometimes you won’t see standing water, but the ground itself will tell you something is wrong. If the soil over the drain field feels spongy, soft, or waterlogged underfoot, it’s a sign of saturation. This indicates that the drain field is constantly wet because it can no longer absorb and filter wastewater effectively. The ground may feel this way even during dry weather. A consistently soggy lawn over the septic system is a clear signal that the drain field is failing and requires professional attention before the problem gets worse.

How to Maximize Your Drain Field’s Lifespan

A high-quality drain field design is the foundation for a long-lasting septic system, but its lifespan ultimately depends on how it’s treated over the years. Think of it like a car—even the best model needs regular maintenance to perform well. The good news is that protecting your investment doesn’t require a ton of effort. By adopting a few simple habits and avoiding common mistakes, you can help ensure the drain field functions properly for decades, preventing premature failures and expensive replacements. Here are the four most important things you can do to keep your system healthy.

Schedule Regular Pumping and Inspections

This is the single most effective thing you can do. Over time, solid waste builds up in the septic tank. If it’s not removed, it can flow into the drain field, clogging the pipes and soil. The best way to prevent this is to have your septic tank pumped out every seven to ten years. This simple maintenance step stops solids from overflowing and causing irreversible damage. Regular septic system inspections are also a smart move. A professional can spot early signs of trouble, like cracks in the tank or distribution box issues, before they turn into a full-blown drain field failure.

Practice Smart Water Usage

Every drop of water that goes down your drain ends up in the drain field. The system is designed to handle a specific daily volume, and consistently exceeding that limit can overwhelm it. When the soil becomes saturated, it can’t properly treat the wastewater, leading to system failure. You can make a big difference by practicing smart water usage. Simple changes like installing low-flush toilets, fixing leaky faucets, and spreading out laundry loads throughout the week can reduce the strain on your system. Being mindful of your water consumption is an easy, no-cost way to protect your septic system and extend its life.

Keep Heavy Equipment Off the Field

Your drain field is a sensitive area. Just below the surface lies a network of perforated pipes and gravel designed to distribute wastewater. Driving or parking heavy vehicles over this area can crush the pipes and compact the soil. Compacted soil loses its ability to absorb liquid, which is the drain field’s primary job. Make sure the area is clearly marked and that everyone on the property—from family members to contractors—knows to stay off it. This includes cars, trucks, riding lawnmowers, and any construction equipment. When we design a septic system, we always consider placement to avoid driveways and other high-traffic zones.

Choose the Right Landscaping

What you plant near your drain field matters. While a nice layer of grass is perfectly fine, trees and large shrubs are a major threat. Their roots are naturally drawn to the moisture and nutrients in the drain field pipes. As they grow, these roots can work their way into the pipes, causing blockages and even breaking them apart. As a rule of thumb, you should plant trees at least 30 to 50 feet away from the leach field. If you want to landscape the area, stick to shallow-rooted plants like grasses and perennial flowers. It’s also critical to avoid building any structures, like sheds, decks, or patios, on top of the drain field.

Should You Repair or Replace Your Drain Field?

When a drain field starts showing signs of trouble, the big question is whether you’re looking at a simple fix or a full-scale replacement. Making the right call saves time, money, and prevents future headaches for property owners. The decision hinges on the severity of the symptoms and the underlying cause of the problem. A professional assessment is the only way to know for sure, but understanding the signs can help you prepare for the conversation and guide your clients effectively.

Knowing When a Repair is Enough

Not every drain field issue spells disaster. If caught early, a repair might be all you need. Watch for early signs like soggy ground, unusually green grass, or slow drains. Sometimes, the system is just overloaded, and reducing water usage can give the soil time to recover. Regular tank pumping also prevents solids from clogging the field. If the issue is a crushed pipe or a bad distribution box, those components can often be repaired without replacing the entire field. An expert inspection is the first step to diagnose the problem accurately.

Red Flags That Signal a Full Replacement

Some symptoms are too serious to ignore and point to a full replacement. If you see standing water or untreated wastewater pooling on the ground, the drain field has failed. This is a significant health hazard that can contaminate local groundwater. Persistent sewage odors or frequent plumbing backups are also clear indicators of a system that can no longer treat wastewater. This is often caused by a dense layer of biomat that has permanently clogged the soil. At this stage, a repair is just a temporary patch. It’s time to start planning for a new system design.

Comparing Costs and Getting a Professional Assessment

Let’s talk numbers. A full drain field replacement is a significant investment, often $5,000 to $20,000 or more, depending on size and complexity. While repairs are less expensive upfront, sinking money into a failing system is a costly mistake long-term. The only way to make a sound financial decision is with a professional assessment. A thorough site evaluation, including crucial soil and percolation testing, determines the soil’s condition and if the field is salvageable. An expert can identify the failure’s root cause and design a replacement that meets all local codes, ensuring long-term performance.

Partner with a Professional for Your Drain Field Project

A septic drain field is a complex system, and its success hinges on a design that’s perfectly tailored to your property. While a DIY approach might seem tempting for some projects, installing a septic system is a complicated job that can easily lead to costly errors, system failures, and significant delays for your build schedule. Working with a professional team from the start is the best way to ensure your project is done right, on time, and in full compliance with Florida’s regulations.

An experienced septic designer does more than just draw up a plan. They conduct the essential site evaluations, analyze the soil, and create a layout that accounts for your property’s unique challenges and local codes. From securing the necessary permits to delivering a final design that guarantees long-term performance, a professional partner manages every critical detail. This collaboration not only saves you from the headaches of navigating the process alone but also gives you confidence that your system will function efficiently for years to come. It’s about getting a reliable, code-compliant design that you can hand off to your installation team without a second thought. When you’re ready to get started, you can submit your project details to get the ball rolling.

Find a Qualified Designer and Installer

Installing a septic system is a precise science. Attempting to handle it yourself often leads to a host of problems, from incorrect placement to improper sizing, which can cause premature failure and environmental issues. A professional company has the expertise and equipment to get the job done efficiently, often in just a day or two, minimizing disruption to your build schedule. When choosing a partner, look for a team with a deep understanding of Florida’s diverse soil types and water tables. Their experience is your best asset for a successful installation that stands the test of time and protects your investment.

Get Help with Permits and Inspections

Before any digging can begin, you need the green light from the county. The permitting process can be a major bottleneck if you’re not prepared. A professional septic designer can help you prepare all the necessary documents, including the soil report, septic design, and a detailed map of your property. They know exactly what local health departments require and can ensure your application is complete and accurate, preventing unnecessary back-and-forth. By handling the paperwork and compliance checks, they streamline the approval process, keeping your project on track and free from bureaucratic delays. Land Perc offers comprehensive permitting and compliance services to make this step seamless.

Rely on Expert Soil Testing and System Design

The foundation of any high-performing drain field is a thorough understanding of the ground it’s built on. A professional site evaluation, including a detailed soil test, is crucial. This analysis determines how quickly your soil absorbs water, the depth to the groundwater, and other critical factors. The results directly inform the design, dictating the correct size and layout for your drain field. With over two decades of specialized experience, our team designs systems based on hard data—from the number of bedrooms in the home to the specific soil conditions—to ensure your drain field is built for optimal performance and longevity.
