What Is a Septic System Site Plan? A Builder’s Guide

A failing septic system is a builder’s worst nightmare, leading to expensive repairs, unhappy clients, and serious environmental issues. The best way to prevent this is by starting with a solid foundation: a professional septic site plan. This document is far more than a permit requirement; it’s an engineered solution designed to ensure long-term performance. It translates critical site data, like soil absorption rates and property grades, into a functional design. Answering the question of what is a septic system site plan is simple: it’s your project’s insurance policy against failure, ensuring every component is placed correctly for maximum efficiency and lifespan from day one.

Key Takeaways

• Get Your Permit Approved Faster: A professional septic site plan is a legal requirement in Florida and the key document that proves your design meets all state and local codes, helping you avoid rejections and keep your project on schedule.
• Ensure an Accurate Installation: Your site plan acts as the master blueprint for your installation team, using precise site data like soil tests and elevations to eliminate guesswork and prevent expensive construction errors.
• Rely on a Certified Expert: Florida law requires that a licensed engineer or certified designer create your septic plan; this ensures the design is safe, effective, and compliant with all environmental regulations from the start.

What Is a Septic System Site Plan?

Think of a septic system site plan as the master blueprint for your project’s wastewater management. Before you can break ground or get a single permit approved, you need this detailed document. It’s a technical drawing that maps out every component of the septic system, showing exactly where it will be installed on a property. More than just a diagram, a professional site plan is a carefully engineered solution based on site-specific data. It’s the key to ensuring a septic system functions correctly for years to come and the first step in a smooth, compliant construction process.

What It Is and Why It Matters

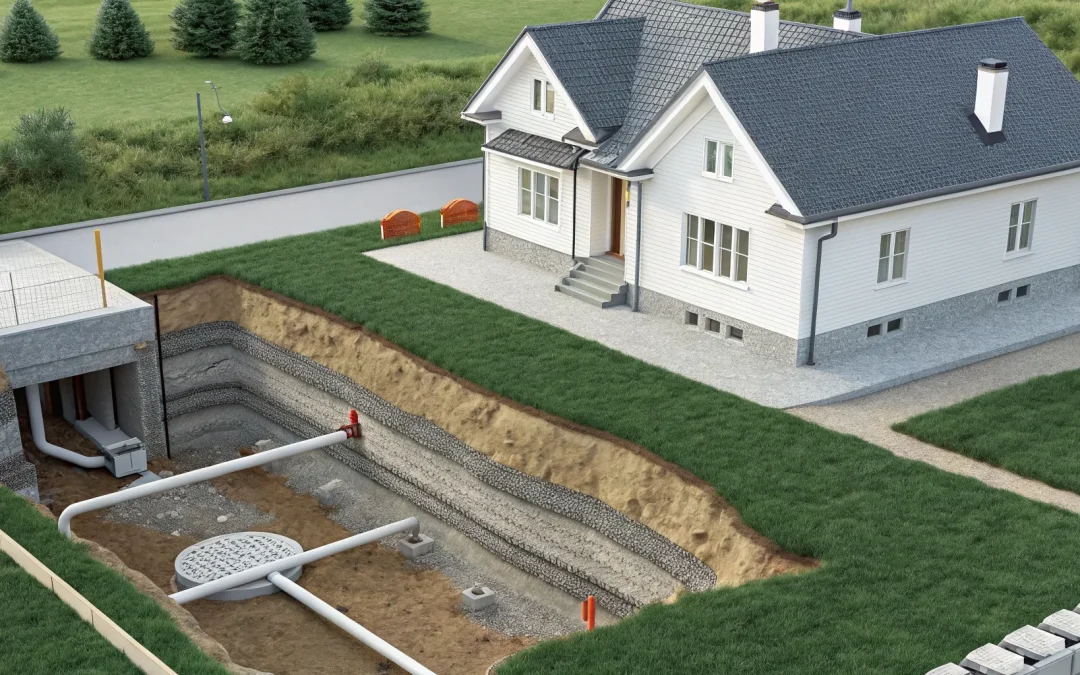

A septic site plan is a comprehensive design that details the placement of the septic tank, drain field, pipes, and all other system components. It’s created based on critical information gathered from the property itself, including soil analysis, percolation test results, and seasonal groundwater levels. This data ensures the system is perfectly suited to the site’s unique conditions. Investing in a proper custom septic system design from the start is one of the smartest moves you can make. It prevents installation errors, protects the local environment, and helps you avoid thousands of dollars in future repairs or system replacements.

Florida’s Legal Requirements

In Florida, a septic system site plan isn’t just a good idea; it’s a legal requirement. You cannot get a construction permit from the local health department without a professionally designed and approved plan. The Florida Department of Health (DOH) and county authorities have strict codes to protect public health and groundwater quality. Your site plan is the primary document that proves your proposed system meets all these regulations. Working with an expert ensures your project includes all the necessary details for permitting and compliance, helping you avoid delays and get your project approved without a hitch.

What’s Included in a Septic Site Plan?

A professional septic site plan is much more than a simple sketch. It’s a detailed technical drawing that serves as the blueprint for your entire onsite wastewater treatment system. Think of it as the master guide for your installers, ensuring every component is placed correctly for long-term performance and compliance. From the tank to the drain field, every detail is mapped out with precision, leaving no room for guesswork during construction.

Septic Tank Placement and Size

Your site plan will pinpoint the exact location and required size of the septic tank. Septic tanks need a lot of room, and their placement is non-negotiable, as it must adhere to strict setback distances from the home, property lines, wells, and other structures. The size of the tank is determined by the home’s capacity. As a general rule, the septic tank size depends on how many bedrooms your house will have. For example, a three-bedroom house typically requires a 900-gallon tank. The plan ensures the selected tank is large enough to handle the property’s wastewater needs without risking premature failure.

Drain Field Layout

The drain field, or leach field, is where treated wastewater is safely dispersed into the soil. The site plan provides a detailed layout of this critical component. The drain field is usually the largest area you need to plan for when installing a septic system, and its size depends on the number of bedrooms and how well your soil drains. Based on the results of the soil and percolation tests, the plan will specify the length, spacing, and configuration of the drain field trenches to ensure efficient and environmentally safe wastewater absorption.

Pipes and Distribution Box

A septic system relies on a network of pipes to move wastewater from the house to the tank and then to the drain field. The site plan clearly marks the location, size, and slope of these pipes to ensure gravity does its job correctly. It also specifies the location of the distribution box, a small but vital component. The distribution box is designed to make sure the liquid from the tank is spread evenly to all parts of the drain field. This prevents any single area from becoming oversaturated and failing, which helps extend the life of the entire system.

Reserve Drain Field Area

Planning for the future is a key part of a smart septic design. That’s why many Florida counties require a “reserve area” to be designated on the site plan. This is a backup spot for a new drain field in case your first one ever fails. This area must remain undisturbed, free from construction, paving, or landscaping that could compact the soil. The required size of the reserve area can be anywhere from 50% to 200% of the original drain field, so it’s essential to check local rules and factor this space into your overall site development plans from day one.

Key Information on Your Septic Site Plan

A professional septic site plan is packed with essential data that goes far beyond simple drawings. It’s a technical document that translates the unique conditions of your property into a functional, compliant wastewater system. Think of it as the master guide for your septic installation, providing a clear roadmap for everyone involved, from the excavator to the health department inspector. Every line, number, and symbol represents a critical piece of information that ensures the system works correctly from day one and for years to come. Understanding these key components will help you coordinate with your installer, pass inspections, and avoid costly setbacks during construction. It’s the foundation upon which a successful, long-lasting septic system is built, protecting both the property and the surrounding environment. This plan isn’t just a formality; it’s your project’s insurance against installation errors, permit denials, and future system failures.

Property Lines and Setbacks

Your site plan will clearly mark the boundaries of the property. More importantly, it shows the required setbacks, which are the minimum legal distances your septic system components must be from other features. Septic tanks and drain fields must be a certain distance from things like wells, buildings, lakes, and property lines to work safely and legally. In Florida, these rules are strict to protect public health and the environment. A precise site plan ensures your installation is fully compliant with state and local codes, preventing any issues with permits or final inspections. It’s the first step in a successful and lawful installation.

Soil and Perk Test Data

Before any design can be finalized, you need to understand the ground you’re working with. The site plan includes crucial data from soil and percolation testing, which evaluates the soil’s texture, composition, and ability to absorb water. For a septic system to function correctly, the soil needs to drain well, but not so quickly that it fails to treat the wastewater. This information is non-negotiable for getting a permit and determines the size and type of drain field your property can support. Our licensed professionals conduct these evaluations to gather the accurate data needed to design a system that is perfectly suited to your site’s specific conditions.

Site Elevation and Grading

The topography of your land plays a huge role in your septic system’s design. The site plan details the site’s elevation and grading, showing the natural slope of the property. This is critical because many septic systems rely on gravity to move wastewater from the tank to the drain field. If the slope isn’t right, the system won’t function properly. This data helps the designer determine if a standard gravity-fed system will work or if an alternative design, like a pump system, is necessary. Getting the elevation right ensures efficient, long-term performance without the need for costly future repairs.

Utility Lines and Easements

Your property likely has existing utility lines for water, electricity, or gas, as well as legal easements that grant access to utility companies. The septic site plan maps these out precisely to prevent conflicts. The system needs to be placed on level ground, away from areas that flood, dense tree roots, and anywhere it can’t be easily reached for pumping and inspections. By identifying all existing infrastructure and access rights, the site plan ensures the septic system is placed in a safe, accessible location, avoiding accidental damage during excavation and guaranteeing that maintenance crews can service the system in the future.

Who Designs a Septic Site Plan in Florida?

When it comes to designing a septic system, Florida has specific rules about who is qualified to create these crucial documents. This is to protect public health, the environment, and your project’s timeline. Working with the right professional from the start ensures your site plan is accurate, compliant, and ready for approval, saving you from costly delays and headaches down the road. Let’s break down exactly who can legally design your septic site plan.

Required Qualifications and Licenses

In Florida, only certain professionals have the green light to design a septic system site plan. The design must be handled by a licensed professional engineer or a certified septic system designer. The Florida Department of Health sets these requirements to make sure every system is safe, effective, and environmentally sound. This isn’t just about following rules; it’s about ensuring the long-term performance of the system and protecting Florida’s unique ecosystems. These licensed experts have the training to interpret state regulations and local health department codes, translating them into a functional design for your property.

Our Certified Design Expertise

Our team at Land Perc is made up of the certified professionals Florida requires for septic system design. We bring decades of experience to every project, ensuring your site plan is done right the first time. A qualified designer will perform a thorough site assessment, conduct precise soil tests, and create a detailed plan that meets all regulatory requirements. This expertise is vital for a smooth project. We handle the technical details so you can focus on the build, confident that your septic system will function properly and adhere to all local codes. Our comprehensive services cover every step, from initial testing to final design.

Meeting State Engineering Standards

Beyond being licensed, a designer must create a plan that meets strict state engineering standards. The Florida Administrative Code details specific criteria for everything from site evaluation and soil characteristics to system sizing. Compliance isn’t optional; it’s a mandatory step for getting the necessary permits to begin construction. Failing to meet these standards can bring your project to a halt. By working with an experienced team, you ensure your site plan is designed for compliance from the very beginning, helping you avoid frustrating revisions and keep your project on schedule.

Why You Need a Professional Septic Site Plan

A professional septic site plan is much more than a box to check on your project timeline. It’s the foundational blueprint that ensures your septic system is efficient, compliant, and built to last. Skipping this step or cutting corners can lead to frustrating delays, costly installation errors, and long-term problems. Investing in a detailed, accurate plan from the start is one of the smartest decisions you can make for your project, your client, and your reputation.

Get Your Permits Approved

In Florida, you can’t break ground without the right permits, and you can’t get those permits without a solid septic site plan. Local health departments need to see a professional design that proves your proposed system meets all state and local regulations. A clear, comprehensive plan from an experienced designer demonstrates full compliance, which helps streamline the review process. This means fewer questions from the health department, a lower chance of rejection, and a much faster path to getting your permits approved so you can keep your project on schedule.

Ensure Accurate Installation

Your site plan is the single source of truth for your installation team. It provides precise, detailed instructions on where to place the septic tank, lay out the drain field, and connect all the pipes. This eliminates guesswork and prevents critical errors during construction. A professional plan accounts for your property’s unique topography, soil conditions, and setbacks, ensuring every component is installed correctly the first time. This accuracy is key to a system that functions properly and avoids the need for expensive, time-consuming rework down the road.

Plan for Future Maintenance

A septic system requires regular maintenance, and your site plan is an essential tool for long-term care. It serves as a permanent record of your system’s exact location and specifications. When it’s time for pumping or if an issue arises, technicians can use the plan to quickly locate the tank and other components without unnecessary digging. Having this document on hand makes septic system maintenance faster, easier, and more cost-effective for the property owner for years to come.

Protect Your Property Value

A properly designed and permitted septic system is a significant asset. Investing in a professional site plan protects that asset by preventing premature system failures, backups, and environmental contamination, all of which can be incredibly costly to fix. When it comes time to sell the property, having a professional site plan on file provides official documentation of a compliant, well-built system. This gives potential buyers peace of mind and helps maintain the property’s value, making it a wise investment for any new construction project.

How a Site Plan Keeps Your Project Compliant

Think of your septic site plan as more than just a technical drawing; it’s your project’s compliance roadmap. In Florida, getting a septic system approved means satisfying regulations at both the state and local levels. A professionally engineered site plan is the primary document that proves your design meets every legal requirement, from public health standards to environmental protections. It translates complex codes into a clear, actionable blueprint that regulators can easily review and approve. This single document is what stands between you and a building permit, making its accuracy and completeness absolutely critical for keeping your project on schedule.

Without a detailed, professional site plan, you risk significant delays, costly revisions, and even legal trouble. An incomplete or incorrect plan is one of the most common reasons for permit rejection, which can throw your entire construction timeline off track. It’s the key to demonstrating due diligence and ensuring your project moves forward smoothly. By investing in a proper plan from the start, you’re not just preparing for installation; you’re building a foundation of compliance that protects your project, your client, and the surrounding environment. This document is your assurance that every component is designed and placed correctly according to the letter of the law.

Meeting Florida DOH Standards

The Florida Department of Health (DOH) sets the essential rules for all septic systems in the state to protect public health. Your site plan is the official record that shows exactly how your project adheres to these non-negotiable standards. The DOH has specific criteria for everything, including minimum distances from wells, property lines, and surface water, as well as requirements for system size based on the home’s specifications.

A professional site plan meticulously documents all these details, leaving no room for interpretation. It provides health department officials with a clear, visual confirmation that your design is safe and compliant. This is why working with an expert who understands Florida’s septic code is so critical. They ensure every calculation and placement on the plan aligns perfectly with DOH regulations, paving the way for a straightforward approval.

Following Local County Codes

While the DOH provides the statewide framework, many Florida counties have their own additional, and often more stringent, septic regulations. A site plan that’s compliant in one county might not pass inspection in another. These local codes can cover anything from unique soil requirements to larger setbacks from protected wetlands or coastal areas. Your site plan must be tailored to the specific jurisdiction where you’re building.

This is where deep local knowledge becomes invaluable. An experienced designer creates a site plan that not only meets state law but also satisfies every local ordinance. They stay current on the specific rules for each county, ensuring your plan won’t get rejected over a regional technicality. Submitting a plan that already accounts for local codes shows regulators you’ve done your homework and helps expedite the permitting process significantly.

Protecting Groundwater and the Environment

A compliant site plan does more than just get your permit approved; it plays a vital role in environmental stewardship. In a state like Florida, with its sensitive aquifers and abundant water bodies, protecting groundwater is a top priority. A properly designed septic system is crucial for preventing harmful pollutants from contaminating soil and water sources. The site plan is the first and most important step in achieving this.

By analyzing soil data, water table levels, and site topography, the plan dictates the optimal location and design for the septic tank and drain field. This strategic placement ensures that wastewater is treated effectively before it ever reaches the water table. Following a professionally engineered site plan is a fundamental part of responsible land development, safeguarding Florida’s natural resources for the future while ensuring the long-term health and safety of the property.

How to Read Your Septic Site Plan

A septic site plan can look like a complex puzzle of lines, symbols, and numbers. But once you know what to look for, it becomes a clear and essential roadmap for your project. Think of it as the blueprint that ensures every component is placed correctly for a safe, compliant, and long-lasting system. For builders and installers, being able to read this document confidently means you can keep your project on schedule, avoid costly mistakes, and communicate effectively with everyone involved, from your crew to the county inspector. Let’s break down the key elements so you can read any septic plan like a pro.

Decoding Symbols, Scales, and Measurements

Every good site plan starts with a legend. This is your key to understanding what all the symbols on the drawing mean. It will identify icons for the septic tank, drain field lines, wells, water pipes, and locations where soil tests were performed. You’ll also see contour lines, which show the property’s topography and changes in elevation. These are crucial for understanding the natural slope of the land. Pay close attention to the scale of the drawing (e.g., 1″ = 20′). This tells you how the measurements on the page translate to the actual dimensions on the ground, ensuring you can accurately map out the system’s footprint.

Finding Key Specs for Your Installer

Your installer needs precise information, and the site plan delivers it. This document is the definitive guide for where every part of the system goes. It provides a detailed map of the property, showing boundaries, the house, and other structures like garages or sheds. The plan will clearly mark the exact location and required size for the septic tank and show the specific layout of the drain field trenches or beds. The septic system designs we create at Land Perc also include all the necessary specifications, from pipe depths to aggregate amounts, giving your installer everything they need for a smooth and accurate installation from day one.

Understanding Setbacks and Elevations

Setbacks are non-negotiable rules that dictate how far the septic system must be from other features on the property. These are in place to protect public health and the environment. Your site plan will clearly mark these required distances. For example, Florida regulations typically require drain fields to be at least 5 feet from property lines, 10 feet from the house foundation, and 75 feet from private drinking water wells. The plan also details site elevations, which are critical for ensuring wastewater flows correctly. For gravity-fed systems, the design relies on the natural slope of the land, and the site plan confirms that the elevations will work as intended.

Common Site Plan Mistakes to Avoid

A solid site plan is your project’s foundation. But even experienced builders can run into common pitfalls that delay permits and drive up costs. Getting ahead of these issues saves everyone a massive headache. Let’s walk through the most frequent mistakes we see and how to steer clear of them. This isn’t just about compliance; it’s about building a reliable system that stands the test of time for the future homeowner.

Inaccurate Site Evaluations

This is the big one. A site plan is only as good as the data it’s built on. Skipping a professional site evaluation or using old information is a recipe for disaster. An accurate assessment of the soil, water table, and drainage is non-negotiable for a system that functions correctly and meets Florida’s regulations. Without precise soil and percolation testing, you risk designing a drain field that won’t absorb effluent properly, leading to system failure and environmental issues. It’s the first and most critical step to getting your design right.

Wrong Tank Size for Your Needs

Choosing the right tank size isn’t a guess. It’s a specific calculation based on the home’s bedrooms and projected water usage. Going too small is a classic mistake that leads to system overload, frequent pump-outs, and premature drain field failure. Florida’s health codes have clear requirements for tank capacity to prevent this. A professional septic tank design ensures your plan meets these standards, so you won’t face permit rejections or have to explain a failing system to an unhappy client down the line.

The Risks of a DIY Plan

While the DIY spirit is great for some projects, septic system design isn’t one of them. The technical knowledge needed to handle Florida’s environmental codes, calculate setbacks, and design a functional system is extensive. Attempting a plan without the right qualifications often results in immediate permit denial, wasting time and money. More importantly, a flawed design can lead to serious health hazards and environmental contamination. Working with certified professionals isn’t just about rules; it’s about ensuring the safety, compliance, and long-term performance of the project.

What to Expect During the Approval Process

Once your septic site plan is complete, the next step is submitting it for approval. This part of the process involves working with the local health department to ensure your plan meets all safety and environmental standards. It can feel like a waiting game, but knowing what to expect can make it much smoother. We handle this entire process for our clients, but it’s always helpful to understand the key milestones, from gathering the right paperwork to handling any requested changes.

Required Documents for Submission

To get your project moving, you’ll need to submit a complete application package to the health department. Think of it like a checklist: the more prepared you are, the faster you’ll get through the line. Your submission must include the detailed site plan we design, which shows the proposed system layout, tank size, and drain field location. You’ll also need the soil and percolation test results that justify the design choices. Each county might have its own specific forms, but we make sure your package includes everything required for a comprehensive septic system design submission, leaving no room for guesswork.

Health Department Review Timeline

The time it takes for the health department to review and approve a septic plan can vary quite a bit. Each county in Florida operates on its own schedule. While the EPA provides general guidance, it’s the local health departments that issue the permits, and their timelines depend on their current workload and the complexity of your project. The best way to support a timely review is to submit a thorough and accurate plan from the start. A complete application is less likely to get stuck in review or sent back with questions, which is why we focus on getting every detail right the first time.

Handling Revisions and Resubmissions

It’s fairly common for a health department to request revisions after their initial review. This is a normal part of the process and usually involves minor adjustments to ensure the plan perfectly aligns with local codes. When this happens, we take care of it immediately. Our team will address the feedback, make the necessary updates to the plan, and resubmit it promptly. We see it as a collaborative step toward getting your permit issued. This back-and-forth is built into our process, so you can rest assured that we’ll manage the communications and revisions needed to get your project approved.

How to Manage Your Site Plan Records

Your septic site plan is more than just a piece of paper for the permitting office. Think of it as the official blueprint for a critical piece of infrastructure on your property. Proper management of this document ensures the system runs smoothly for years, simplifies maintenance, and protects the property’s value. Keeping your records organized is a straightforward process that pays off, whether you’re planning future projects or preparing to sell the property. Here’s how you can keep your site plan and related documents in order.

Storing Your Plan for Easy Access

Once your septic system is installed, you should have an “as-built” diagram. Keep this document in a safe, accessible place. We recommend creating both a physical and a digital copy. Store the paper version in a waterproof folder with other important property documents. For the digital version, scan it and save it to a cloud service like Google Drive or Dropbox. This way, you can easily share it with service technicians or access it from anywhere. Along with the site plan, keep a running log of all maintenance, including pumping dates and service calls. This complete record gives you a full history of your system’s health and performance, which is invaluable for troubleshooting and future planning.

When to Modify Your Site Plan

Your property isn’t static, and your site plan may need to change with it. Any significant modifications to the home or land can impact your septic system. Are you planning to add a bedroom, build a swimming pool, or construct a new outbuilding? These projects often require an updated site plan to ensure the septic system can handle the new load or isn’t damaged during construction. Investing in a professional septic system design update is crucial. An engineer will ensure any changes comply with current regulations, preventing costly mistakes and ensuring the long-term safety and efficiency of your system. Trying to skip this step can lead to system failure and expensive repairs down the road.

Transferring Records When You Sell

When it’s time to sell the property, having a complete set of septic system records is a major asset. It shows potential buyers that the property has been well-maintained and gives them confidence in their purchase. Gather all your documents, including the original site plan, permits, inspection reports, and the maintenance log you’ve been keeping. Providing this package to the new owner facilitates a smooth transition and helps them understand how to care for the system properly. For an official record, you can also ensure a copy of the plan is on file with your local health department, as outlined by the Florida Department of Health.

Related Articles

• What Is a Septic System Site Plan & Why You Need One
• Septic Permits in Florida: Do You Need One? (2025 Guide)
• Florida Septic System Design Requirements: A Guide

Frequently Asked Questions

How long does the septic design process usually take? The timeline depends on a few factors, like the complexity of your site and how quickly we can complete the necessary soil testing. Once we have all the data from the site evaluation, the actual design work is quite efficient. The most variable part of the timeline is often the local health department’s review period. The best way to keep your project on track is to start with a complete and accurate plan, which minimizes the chance of questions or revisions from their end.

What happens if my property’s soil isn’t suitable for a standard septic system? This is a common concern, but it rarely means your project has to stop. If the soil and percolation tests show that a conventional drain field won’t work, we simply design an alternative system. There are several engineered solutions, like mound systems or aerobic treatment units, that are specifically designed for challenging sites with poor soil or high water tables. We’ll create a custom plan that works for your property and meets all Florida health codes.

Do I need a new site plan if I’m just replacing an old septic system? Yes, you almost always need a new, updated site plan. Septic regulations have changed significantly over the years, and the system that was installed decades ago likely doesn’t meet today’s stricter environmental and health standards. A new plan ensures your replacement system is fully compliant with current codes for sizing, materials, and setbacks, which is a requirement for getting your permit approved.

Why can’t I just use a surveyor to draw my septic plan? A surveyor is an expert at defining property boundaries, easements, and topography, which is critical information for the plan. However, they are not licensed to design the septic system itself. In Florida, the design must be created by a professional engineer or a certified septic system designer who has the specific training to interpret soil data, calculate system capacity, and ensure the final plan complies with all state and local health regulations.

What is the most common reason a septic site plan gets rejected by the health department? By far, the most frequent cause for rejection is inaccurate or incomplete site information. Plans that are based on a poor site evaluation, use incorrect setback measurements, or fail to address specific local county rules are almost always sent back for revisions. This is why we emphasize a thorough and professional site assessment from the very beginning. Getting the data right the first time is the key to avoiding permit delays.
